Lightning Protection Conductors made of Electrical Grade Aluminium Alloy with cross sectional area of 50 sq.mm confirming to IS/IEC 62305-3 and IEC 62561-2 are designed to conduct lightning current between the air termination and the earth termination system. Insulated Down conductors are also available, where separation distance, flashover is a concern and to minimise the risk of Touch Voltage.

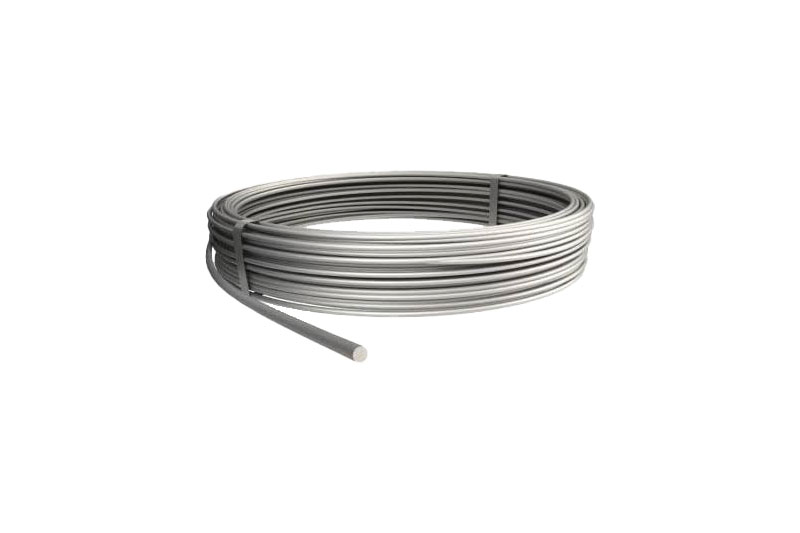

Aluminium Bare Conductor
Aluminium Bare Conductor

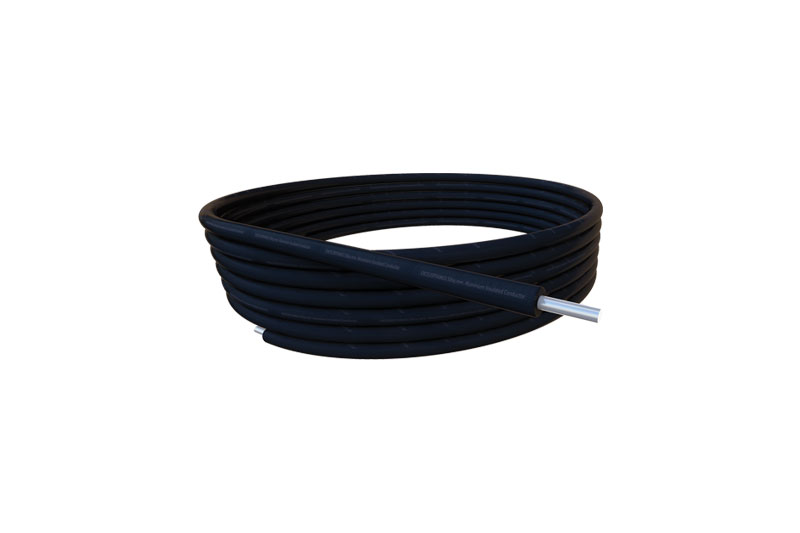

Aluminium Insulated Conductor
Aluminium Insulated Conductor
  • An efficient replacement for copper conductors
  • Flexible
  • Limits Touch Potential
  • Provide safe separation distance
  • Easy for Installation
Specifications Insulated  Bare
Base Material Aluminium
No of Cores 1
Conductor Size (sq.mm) 50
Diameter of each strand(mm) 8
No of strands 1
Insulation Material PVC Compound with UV Resistance -
Insulation Thickness Nominal (mm) 2 -
Insulation Colour Black -
Insulation Resistant Constant at 27 deg C(Min) M.ohm/km 36.70 -
Impulse Withstand Voltage (KV) 65 -
Conductor Resistance (DC) (OHMS/KM) at 20 Deg C (max) 0.641
Length in meters 30/50/100/250m Coil 50/100/200m Coils
  • Impulse Insulation Resistance Test at National Test House Ghaziabad (TC No. : NTH (NR)/ EL (HV)/2021/0046A)
