Vertical Air Terminal Rods, also known as Franklin Rods confirming to IS/IEC 62305-3 are designed to protect structures, exposed equipment (Solar PV System, Towers etc.) from Direct Lightning Strikes. They are made-up of Copper Bonded/Stainless Steel Solid Rods. For Better Contact with the Down/Interconnecting Conductors, Pressed Terminals are provided. It Comes with Nylon Insulated Base which provide proper Insulation and Separation with the supporting structure.

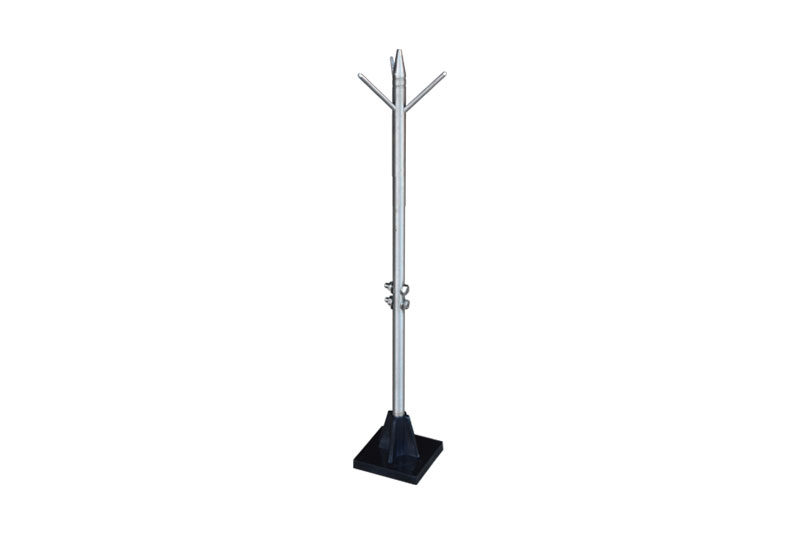

Stainless Steel Multi Spike LA
Stainless Steel Multi Spike LA

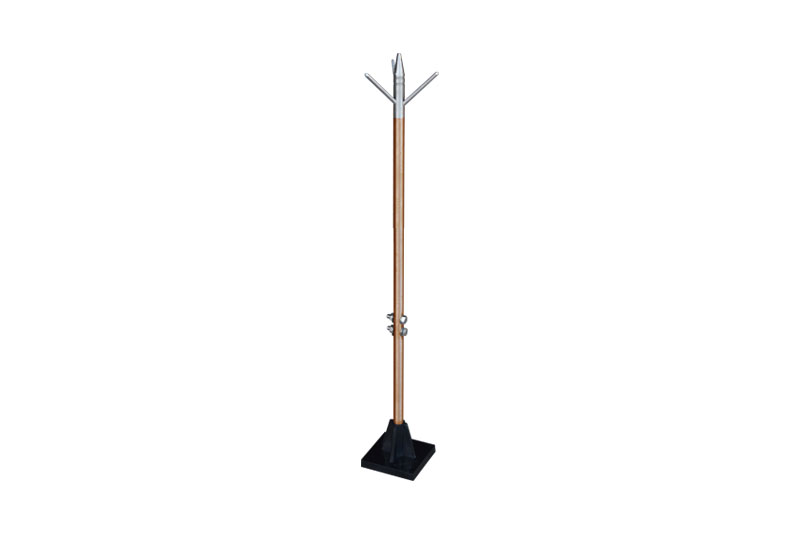

Copper Bonded Multi Spike LA
Copper Bonded Multi Spike LA

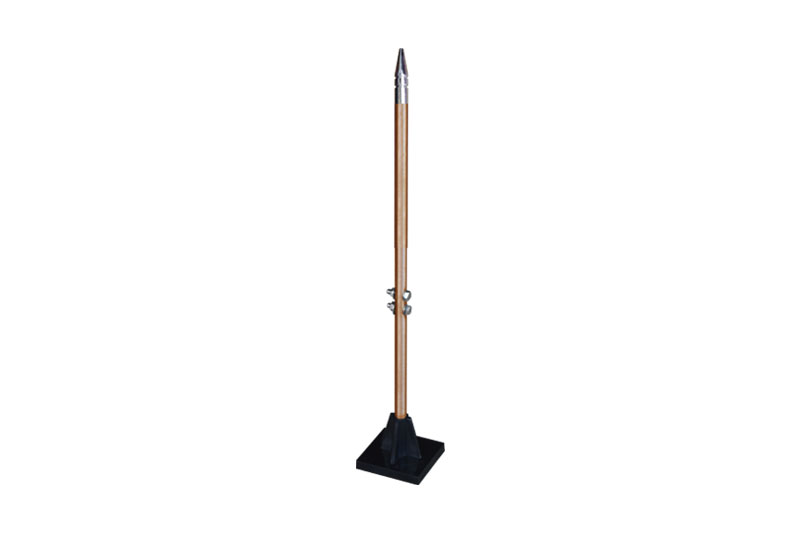

Copper Bonded Single Spike LA
Copper Bonded Single Spike LA
  • Copper Bonded Vertical Air Termination Rods with Tinned Tip provides Oxidation free striking area
  • UV Treated Nylon Insulated Base for better isolation and longer life
  • Pressed Area for interconnection or connecting down conductors
  • Readymade Lightning Arrester Extender for ease of extension (Optional)
Specifications Single Spike LA Multi Spike LA
Complied To IS/IEC 62305-3:2010,
IEC 62561-2:2018
Vertical Air Termination Rod
Base Material/Material Low Carbon Steel
(Tata/Jindal/Vizag)		 Stainless Steel
Base Coating Material Nickel
Coating Material 99.9% Pure Electrolytic Grade Copper Anode
(Mitsubishi Luvata Japan)		 -
Coating Thickness 250/100 Microns (avg.) -
Diameter 16mm 20mm 18mm
Available Length 1m, 2m 1m
No Of Spikes 1 4 4
Tin Coating on Spikes 10 microns (avg.) -
Insulated Base
Material Nylon
Length x Width x Height 100mm x 100mm x 15mm
  • ISI Marked [IS 1772] : Electroplated Coatings of Copper (CM/L : 6400125807)
    • Thickness of Copper Coating
    • Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray
    • Adhesion Test
  • Coating Thickness Test as per IEC 62561-2:2018
