Earth Pit/Inspection Chambers are provided to safely enclose the Earthing System, for carrying out maintenance, Inspection and Testing Purpose. To avoid masonry work at site, Excel Earthings provides ready-made earth pit chambers with removable lid made of high-density UV Resistant Polypropylene/Poly Vinyl Chloride Confirming to IEC 62561-5. They are designed in such a way to minimises the effect due to ageing, crack while installed in soil

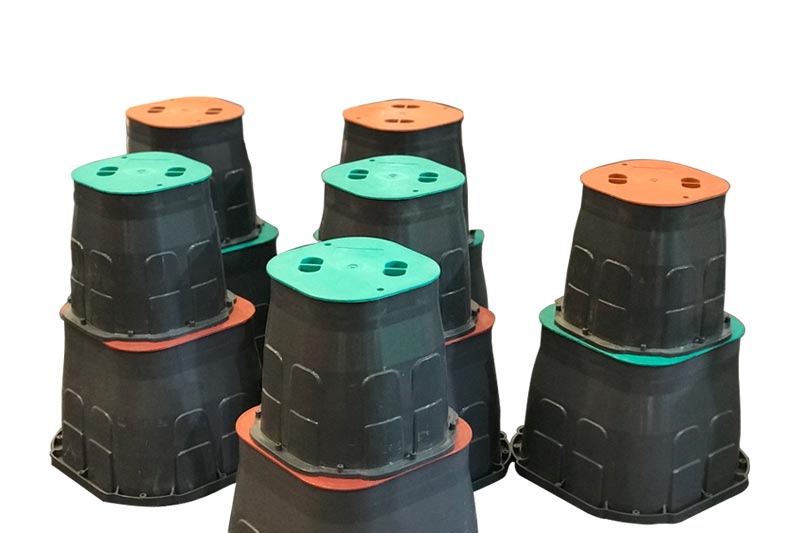

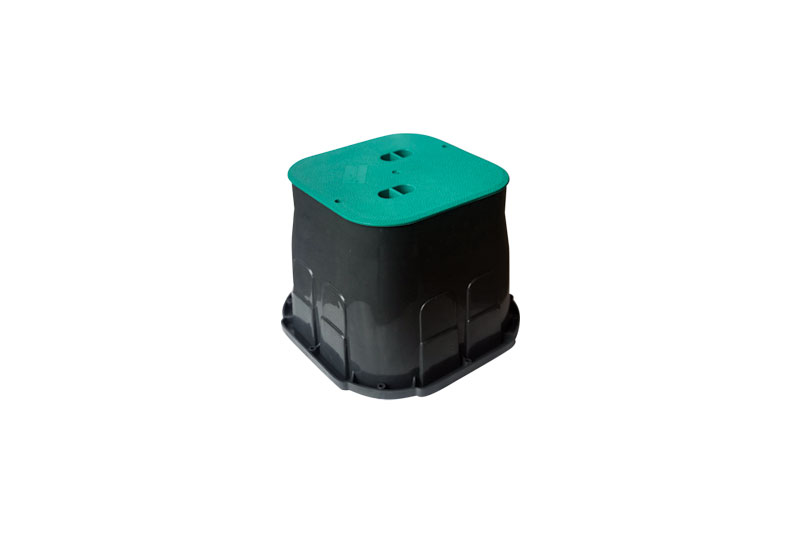

Earth Pit Chambers
Earth Pit Chambers
Earth Pit Chambers
Earth Pit Chambers

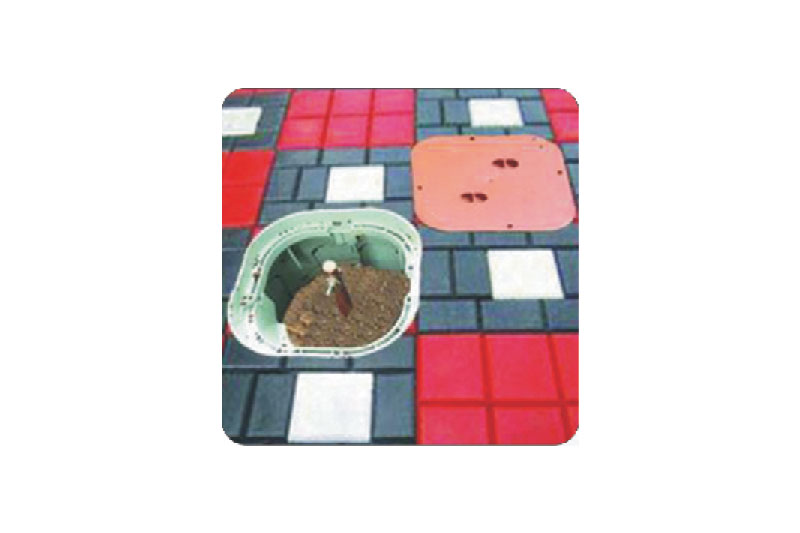

Installation
Installation
  • High Load-Bearing Capacity
  • UV Protected
Specifications EPC 18X18 EPC 24X24 EPC 30X30
Complied To IEC 62561-5:2017
Material PVC PP
Lid Colour Green/Red
Available Top Dimensions 180mm x 180mm 240mm x 240mm 300 mm x 300 mm
Available Bottom Dimensions 240mm x 240mm 310mm x 310mm 400 mm x 400 mm
Available Height 210mm 230mm 280 mm
  • Compression Test/Weight Holding Capacity is Tested and Certified (TC No.: 20439,19553) from CIPET Kochi (NABL Accredited Laboratory)
