Excel Conductive Concrete is high grade electronically conductive carbon granules which should be mixed with cement and water before applying. Conductive Concrete provides highly stable, low resistive Permanent Solution for Electrical Earthing. It forms a continuous protection against corrosion of the Earth Electrodes and thus increases the entire life of the earthing system.

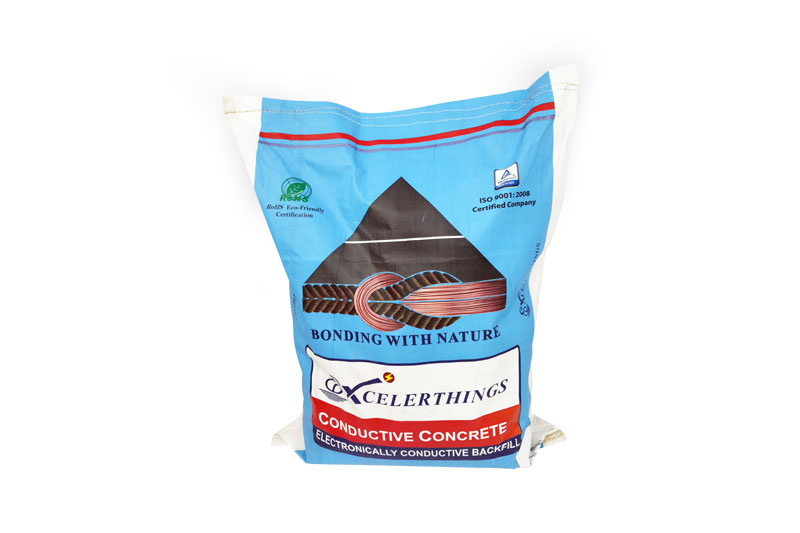

Conductive Concrete
Conductive Concrete
  • Mixture of Highly Conductive Carbon Granules
  • Increases the surface area of the earth electrode
  • Exceptionally Low Resistive Material ( <. 0.096 ohm-m )
  • Non-Corrosive
  • Maintenance Free - Provides Permanent Earthing Solution
  • No effect of seasonal Variations
Specifications Details
Physical state Granules
Colour Black
Resistivity <. 0.096 ohm-m
Packaging size 10kg, 25Kg, 40Kg
Packaging Type Bag
Soil Condition Any
Anti-corrosive Yes
Maintenance Required Nil
Environmental Friendly Yes
Life span More than 40 years*

*Depends on the soil conditions

  • IEC 62561-7:2018 Tested and Certified (TC No: MBT/TC/2020K10004)
  • Electrical Resistivity Test as per IEC 62561-7:2018
