Excel Earthings

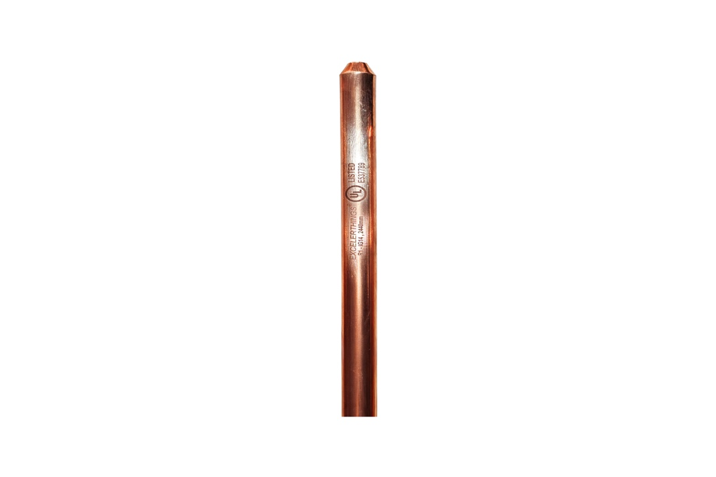

This UL Listed ground rod features a high-tensile, low-carbon steel core bonded with pure electrolytic copper for excellent durability and conductivity. A nickel layer seals the bond to prevent separation, and the copper coating is applied after fabrication to fully cover the steel. With a crack-resistant, 254-micron thick copper layer, it offers superior corrosion resistance and long-term performance.

  • Superior Electrical, Mechanical and Thermal Properties (IEEE 837).
  • Fast Dissipation of Fault Current.
  • No joints beneath the soil as in Plate Electrodes.
  • Good Corrosion Resistance than Cast Iron/ Hot Dip GI Electrodes

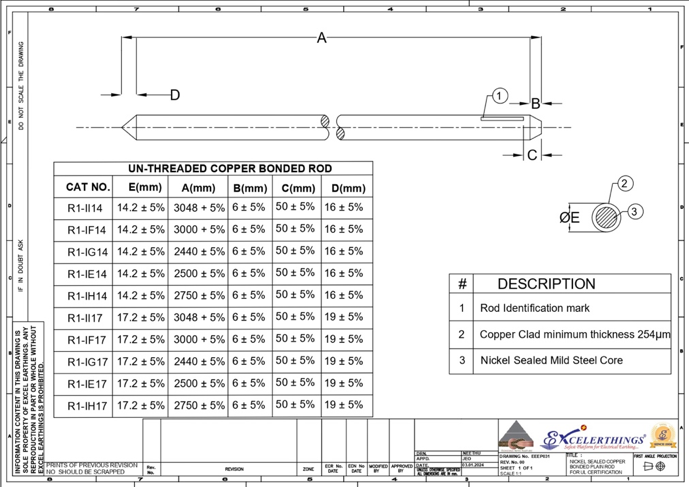

Specifications

Details

Base Material

Low Carbon Steel
(Tata/Jindal/Vizag)

Base Coating Material

Nickel

Coating Material

99.9% Pure Electrolytic Grade Copper Anode
(Mitsubishi Luvata Japan)

Available coating Thickness

254 Microns

Available Diameter(mm)

14.2 mm,17.2 mm

Available length(mm)

2440,2500,2750,3000,3048
  • UL (Underwriters Laboratories) certification which ensures products meet rigorous safety standards through testing, inspection, and auditing. The product is UL listed
    • Adhesion Test
    • Bend Test
    • Electrical Resistivity Test
    • Tensile Strength
    • Yield/Tensile Ratio
    • Coating Thickness Test
    • Environmental Test
  • ISI Marked [IS 1772] : Electroplated Coatings of Copper (CM/L : 6400125807)
    •  Thickness of Copper Coating
    • Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray
    • Adhesion Test
  • Short Circuit Current Tested from Central Power Research Institute Bangalore (TC No.: SC15357B, SC15357A)
  • ASTM B499:2014- Measurement of Copper Coating Thickness (TC No.: ML/23835/4/20-21)
  • Coating Thickness Test as per Clause 9.6.1 UL 467
  • Adhesion Test as per Clause 9.7.1 UL 467
  • Bend Test as per Clause 9.7.2 UL 467
  • Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray Test as per Clause 4.5 IS 1772:1973
  • Environmental Test as per Clause 5.3.5 IEC 62561-2:2018
