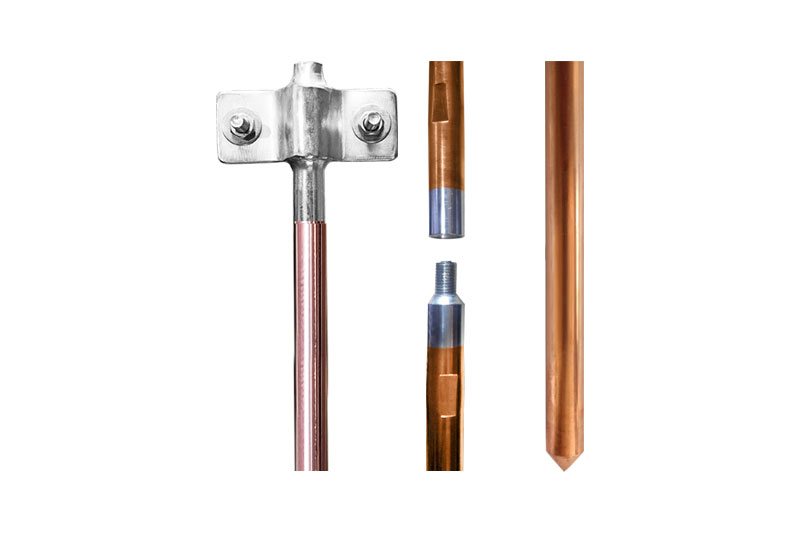

Deep Driven Rods are preferred where the soil resistivity decreases with depth. These rods help to reach stable grounds, such that the value of the electrode resistance remains stable even if the top layers of the ground dry out. As per customer requirement Extendable Copper Bonded Rods with internal threads or external coupler can be provided.
Reference:
| 7 Nos. of Cast Iron Plate 1.2m x 1.2m x 12.5mm for a fault current of 7.87kA in 100ohm-m soil resistivity can be reduced to 5 Nos. of Extendable Copper Bonded Rod 40mm dia. 6mtr Long /7 Nos. of 32mm dia. 6mtr Long. Extendable Copper Bonded Rods are used for Transformer Neutral and Body Earthing reducing the overall cost and area required for installation in a more efficient manner. |
NB: Customised Products are also available at Customer Request. Please be in touch with us for more information.
| Specifications | Details |
|---|---|
| Base Material | Low Carbon Steel (Tata/Jindal/Vizag) |
| Base Coating Material | Nickel |
| Coating Material | 99.9% Pure Electrolytic Grade Copper Anode (Mitsubishi Luvata Japan) |
| Available Coating Thickness | 250/100 Microns (Avg.) |
| Available Diameter(mm) | 16,17.2,20,25,32,40,50 |
| Available Length(m) | 4mtr, 5mtr, 6mtr, 9mtr & above |
| V Strip Dimension (optional) | 50mm x 5mm x 150mm Long |
| T-Strip Dimension (optional) | 32mm x 5mm x 150mm Long |
| Connectors | SS 304 Grade Nut Bolts |
