Excel Earthings

99.95% pure Electrolytic Grade Copper is Molecularly Bonded to Nickel-Sealed Low Carbon Steel Core having High Tensile Strength. Nickel Sealing is done for good Adhesion and Copper Coating will not crack when bent or driven. No part of steel is Exposed since Copper Coating is done after all Fabrication. The standard copper coating thickness is 250/100 microns.

NB: Customised Products are also available at Customer Request. Please be in touch with us for more information.

Copper Bonded Rod 250 Microns
Copper Bonded Rod 250 Microns
Copper Bonded Rod 100 Microns
Copper Bonded Rod 100 Microns

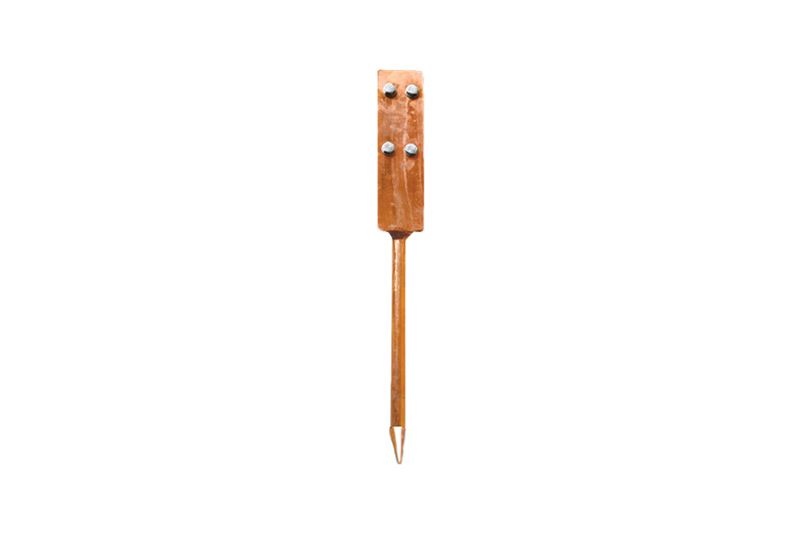

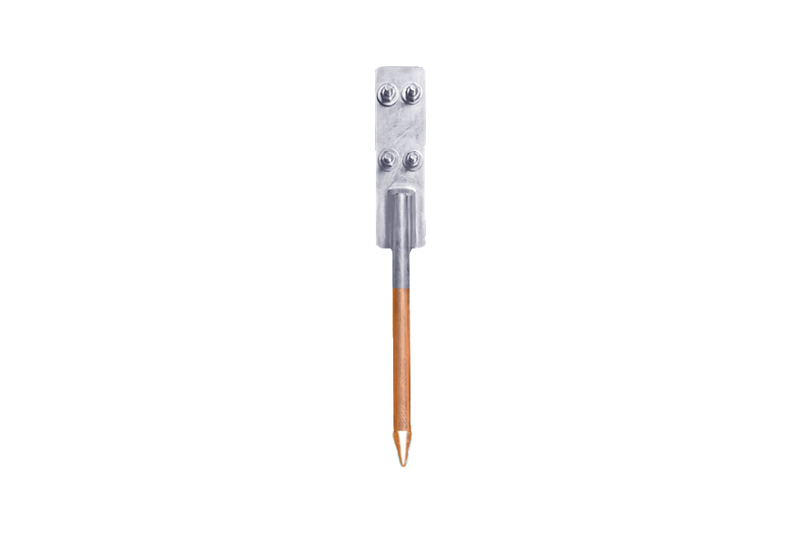

Copper Bonded Rod with V Strip 250 Microns
Copper Bonded Rod With V Strip 250 Microns
Copper Bonded Rod with V Strip 100 Microns
Copper Bonded Rod With V Strip 100 Microns

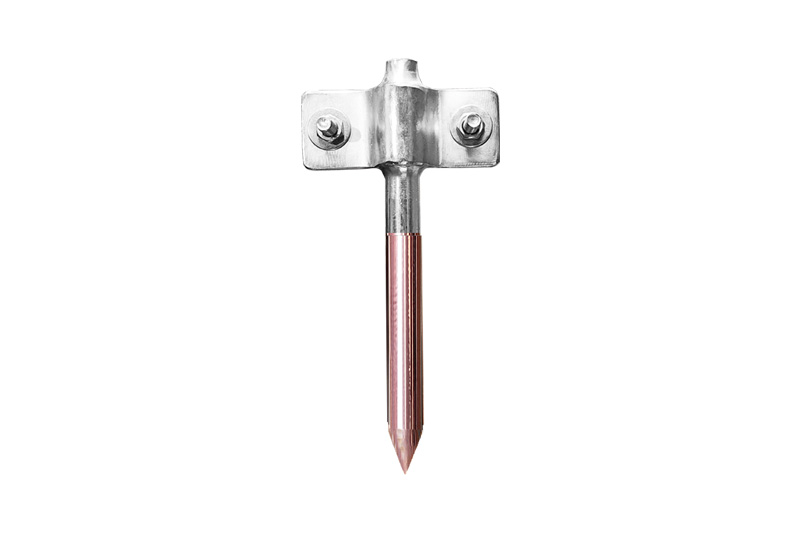

Copper Bonded Rod with T Strip 250 Microns
Copper Bonded Rod With T Strip 250 Microns
Copper Bonded Rod with T Strip 100 Microns
Copper Bonded Rod With T Strip 100 Microns

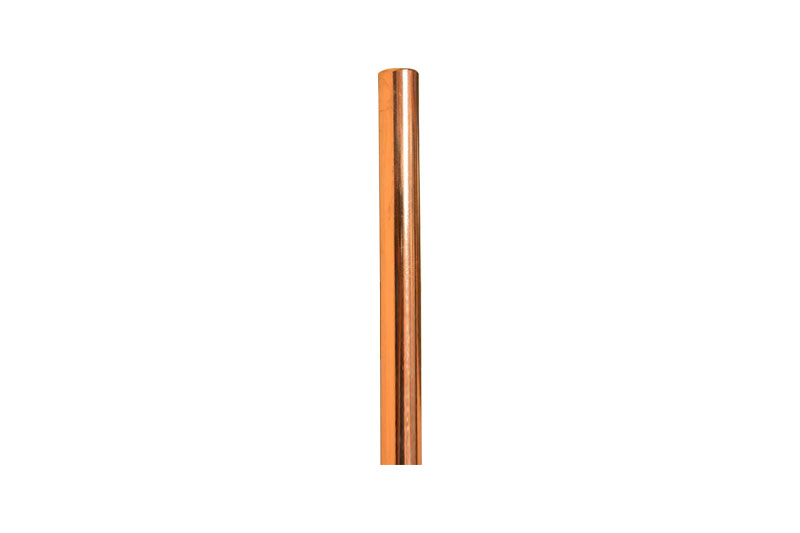

Copper Bonded Plain Rod
Copper Bonded Plain Rod
  • Superior Electrical, Mechanical and Thermal Properties (IEEE 837).
  • Fast Dissipation of Fault Current.
  • No joints beneath the soil as in Plate Electrodes.
  • Good Corrosion Resistance than Cast Iron/ Hot Dip GI Electrodes
Specifications Details
Base Material Low Carbon Steel
(Tata/Jindal/Vizag)
Base Coating Material Nickel
Coating Material 99.9% Pure Electrolytic Grade Copper Anode
(Mitsubishi Luvata Japan)
Available Coating Thickness 250/100 Microns (avg.)
Available Diameter(mm) 14.2,16,17.2,20,25,32,40,50
Available Length(m) 1.2 to 3.0
V Strip Dimension (optional) 50mm x 5mm x 150mm Long
T-Strip Dimension (optional) 32mm x 5mm x 150mm Long
Connectors SS 304 Grade Nut Bolts
  • IEC 62561-2:2018 Lightning Protection System Components- Part2: Requirements for Conductors and Earth Electrodes (TC No.:C2/0000032498, D211105006/D211105006-10)
    • Adhesion Test
    • Bend Test
    • Electrical Resistivity Test
    • Tensile Strength
    • Yield/Tensile Ratio
    • Coating Thickness Test
    • Environmental Test
  • ISI Marked [IS 1772] : Electroplated Coatings of Copper (CM/L : 6400125807)
    • Thickness of Copper Coating
    • Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray
    • Adhesion Test
  • Short Circuit Current Tested from Central Power Research Institute Bangalore (TC No.: SC15357B, SC15357A)
  • ASTM B499:2014- Measurement of Copper Coating Thickness (TC No.: ML/23835/4/20-21)
  • Coating Thickness Test as per Clause 9.6.1 UL 467
  • Adhesion Test as per Clause 9.7.1 UL 467
  • Bend Test as per Clause 9.7.2 UL 467
  • Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray Test as per Clause 4.5 IS 1772:1973
  • Environmental Test as per Clause 5.3.5 IEC 62561-2:2018
